Description

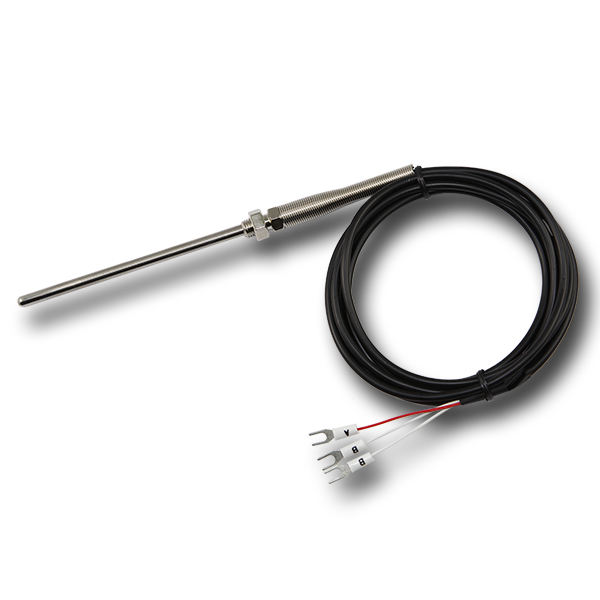

The HAWK F model threaded type temperature sensor is a sensor (often RTD or thermocouple) embedded in a metal housing with external thread process connections (e.g., 1/4″NPT, G1/2, etc), so making it easy to install into pipes, tanks, or other machinery for direct contact temperature sensing. This mounting method ensures good thermal contact and secure installation.
Typical Applications
- Injection molding machinery
- Vehicle brake system
- Plastic processing equipment
- Power generating stations
- Cylinder and sump
- Industrial engines
- Pipelines and vessels
- Bearing processing
Specifications
SENSING ELEMENT
K(Ni-Cr, Ni-Al)…0/+1200°C,
E(Ni-Cr, Ni-Cu)…-200/+900°C,
J(Fe, Ni-Cr)…-50/750°C,
T(Cr, Ni-Cr)…-200/+350°C,
N(Ni-Cr-Si, Ni-Si)…0/1200°C,
Platinum 100Ω/500Ω/1000Ω,
Nickel 120Ω, Copper 10Ω,
Single, Double or Triple Resistance, Element.
TOLERANCE (0C)-PT100
JIS/DIN
| Class A | Class B |
| ±(0.15+0.002|t|) | ±(0.3+0.005|t|) |
ASTM
| Class A | Class B |
| ±(0.13+0.0017|t|) | ±(0.25+0.0042|t|) |
PROBE SIZE
1/4″ diameter-Standard, 3/8″, 3.2mm, 6mm, 8mm, 10mm, 12mm, others dia available.
PROBE LENGTH
10mm, 20mm, 1/2″, 1″, 1 1/2″ standard lengths, others available.
CONNECTION STYLE
Fixed Rigid Male/Female,
Sliding Compression Male/Female,
Union Rotatable Male/Nut Female,
Swivel nut Male/Female Rotatable.
CONNECTION SIZE
1/2″, 3/8″, 1/4″NPT standard, JIS, DIN,M14*1.0, M20*1.5 and others available.
PROBE MATERIAL
SS304, SS316, SS316L.
TRANSITION STYLE
Standard, Spring or Armor.
INSULATION/CONDUCTOR
Fiberglass, PVC or PTFE.
WIRE TERMINATION
Plain Leads-not stripped, Stripped.
Lead 3mm, Spade lug,
Standard Male Plug, Mini Male Plug,
Standard Female Socket,
Mini Female Socket,
Terminal Pin or others.
