Description

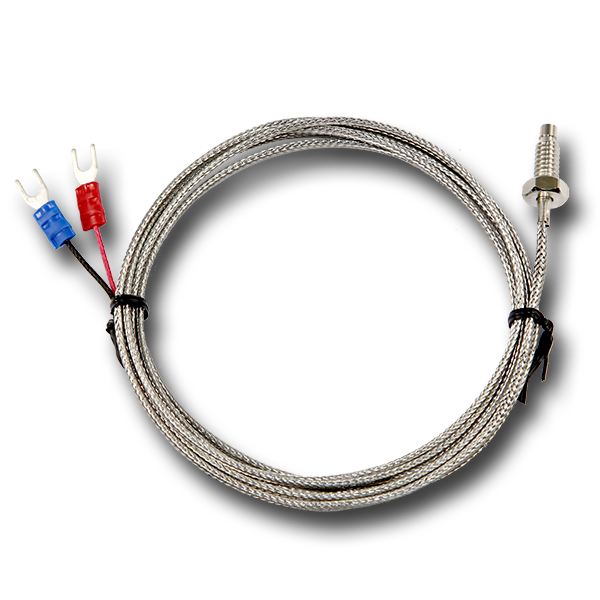

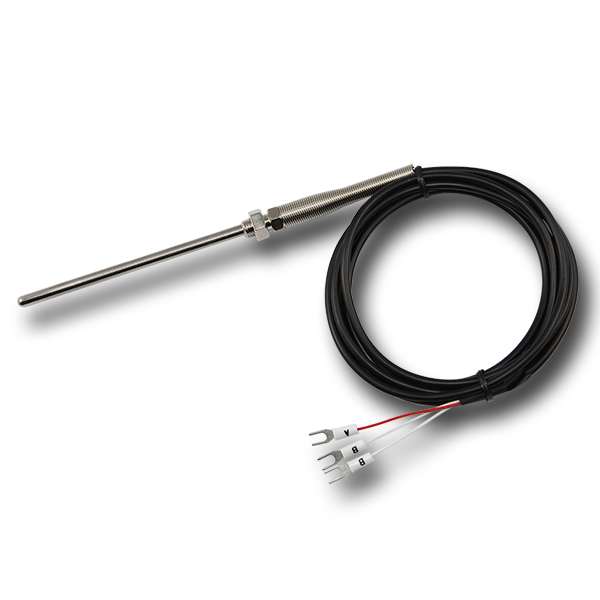

The HAWK E model screw type temperature sensor is a sensor (often RTD or thermocouple) embedded in a metal housing with external screw threads – commonly M6, M8, M10, or so on – so it can be easily installed into threaded ports or equipment. This mounting method ensures good thermal contact and secure installation, making it common in industrial machinery, HVAC systems, extrusion machines, and plastic injection molding equipment.
Typical Applications
| Industry | Usage |
| Plastics | Mold and nozzle temperature control |
| HVAC | Air duct or pipe temperature monitoring |
| Machinery | Bearing housings, motors, compressors |
| Food/Pharma | Clean-in-place temperature feedback (with hygienic designs) |
Specifications
SENSING ELEMENT
K(Ni-Cr, Ni-Al)…0/+1200°C,
E(Ni-Cr, Ni-Cu)…-200/+900°C,
J(Fe, Ni-Cr)…-50/750°C,
T(Cr, Ni-Cr)…-200/+350°C,
N(Ni-Cr-Si, Ni-Si)…0/1200°C,
Platinum 100Ω/500Ω/1000Ω,
Nickel 120Ω, Copper 10Ω,
Single, Double or Triple Resistance, Element.
TOLERANCE (0C)-PT100
JIS/DIN
| Class A | Class B |
| ±(0.15+0.002|t|) | ±(0.3+0.005|t|) |
ASTM
| Class A | Class B |
| ±(0.13+0.0017|t|) | ±(0.25+0.0042|t|) |
PROBE SIZE
1/4″ diameter-Standard, 3/8″, 3.2mm, 6mm, 8mm, 10mm, 12mm, others dia available.
PROBE LENGTH
10mm, 20mm, 1/2″, 1″, 1 1/2″ standard lengths, others available.
SCREW CONNECTION SIZE
ISO Metric Coarse Thread,
ISO Metric Fine Thread,
Unified National Fine Thread (UNF),
Unified National Coarse Thread (UNC).
PROBE MATERIAL
SS304, SS316, SS316L.
TRANSITION STYLE
Standard, Spring or Armor.

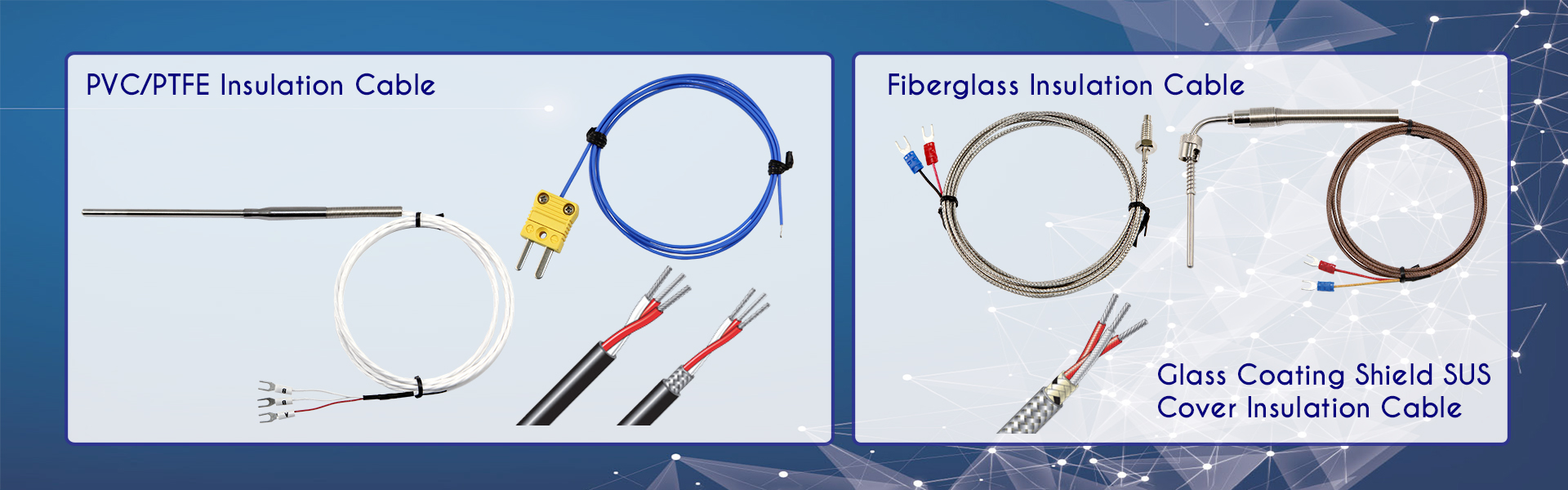

INSULATION/CONDUCTOR
Fiberglass, PVC or PTFE.
WIRE TERMINATION
Plain Leads-not stripped, Stripped.
Lead 3mm, Spade lug,
Standard Male Plug, Mini Male Plug,
Standard Female Socket,
Mini Female Socket,
Terminal Pin or others.
