Description

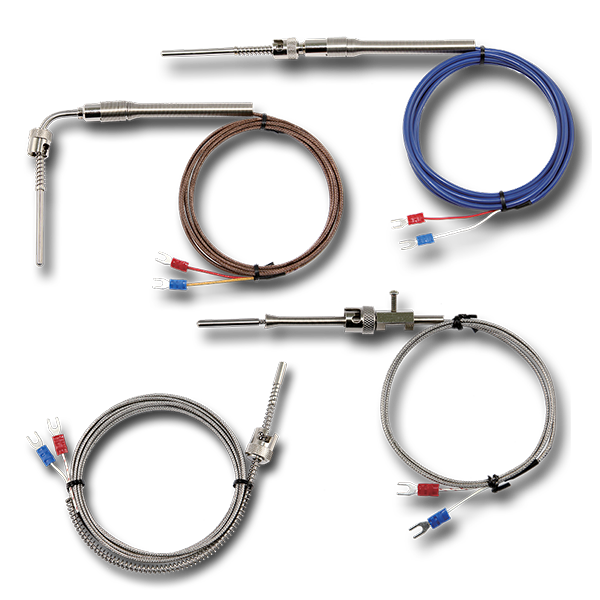

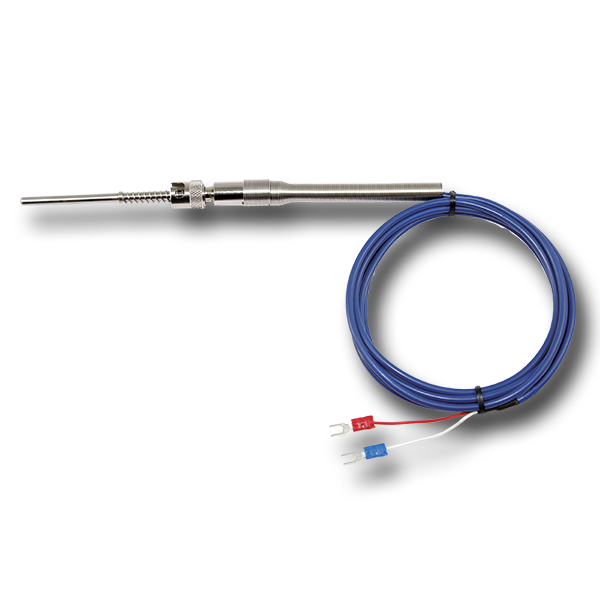

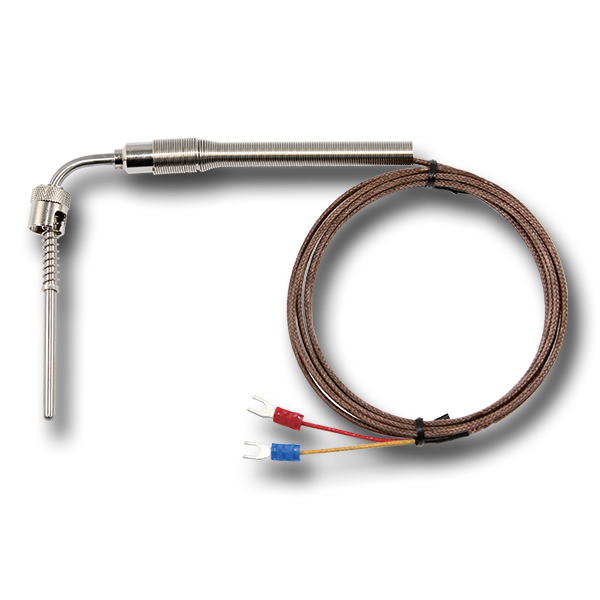

The HAWK B model temperature sensor is with the bayonet connection design which provides a reliable reading, low cost, quick installation and secure contact to virtually any application requiring constant temperature monitoring and checking. It can provide mechanical protection in harsh environment. This compact and durable device is ideal for confined and high-vibration environments such as plastic molding, metal processing, and die casting industries.
Typical Applications
- Injection molding machinery
- Vehicle brake system
- Plastic processing equipment
- Power generating stations
- Cylinder and sump
- Industrial engines
- Pipelines and vessels
- Bearing processing
Specifications
SENSING ELEMENT
K(Ni-Cr, Ni-Al)…0/+1200°C,
E(Ni-Cr, Ni-Cu)…-200/+900°C,
J(Fe, Ni-Cr)…-50/750°C,
T(Cr, Ni-Cr)…-200/+350°C,
N(Ni-Cr-Si, Ni-Si)…0/1200°C,
Platinum 100Ω/500Ω/1000Ω,
Nickel 120Ω, Copper 10Ω,
Single, Double or Triple Resistance, Element.
TOLERANCE (0C)-PT100
JIS/DIN
| Class A | Class B |
| ±(0.15+0.002|t|) | ±(0.3+0.005|t|) |
ASTM
| Class A | Class B |
| ±(0.13+0.0017|t|) | ±(0.25+0.0042|t|) |
PROBE SIZE
1/4″ diameter-Standard, 3/8″, 3.2mm, 6mm, 8mm, 10mm, 12mm, others dia available.
PROBE LENGTH
10mm, 20mm, 1/2″, 1″, 1 1/2″ standard lengths, others available.
JIG CONNECTION SIZE
Thread…..3/8″, 1/4″, 1/8” NPT standard, JIS, DIN , M10*1.0, M14*1.0 and M16*1.5 available.
PROBE MATERIAL
SS304, SS316, SS316L.
TRANSITION STYLE
Standard, Spring or Armor.
INSULATION/CONDUCTOR
Fiberglass, PVC or PTFE.
WIRE TERMINATION
Plain Leads-not stripped, Stripped.
Lead 3mm, Spade lug,
Standard Male Plug, Mini Male Plug,
Standard Female Socket,
Mini Female Socket,
Terminal Pin or others.
