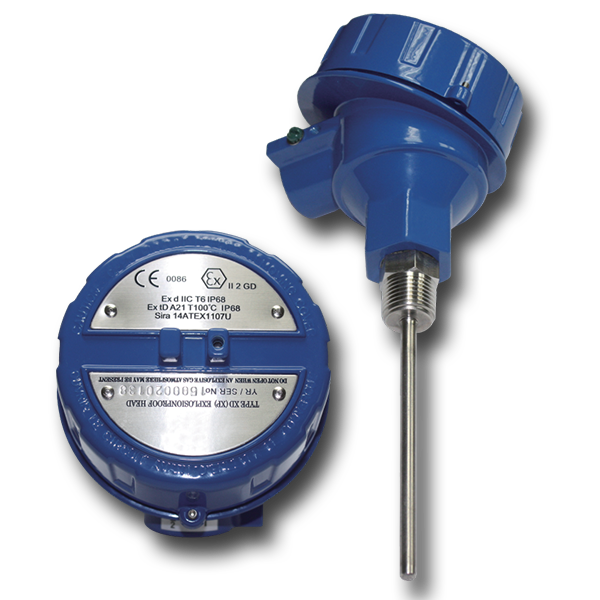

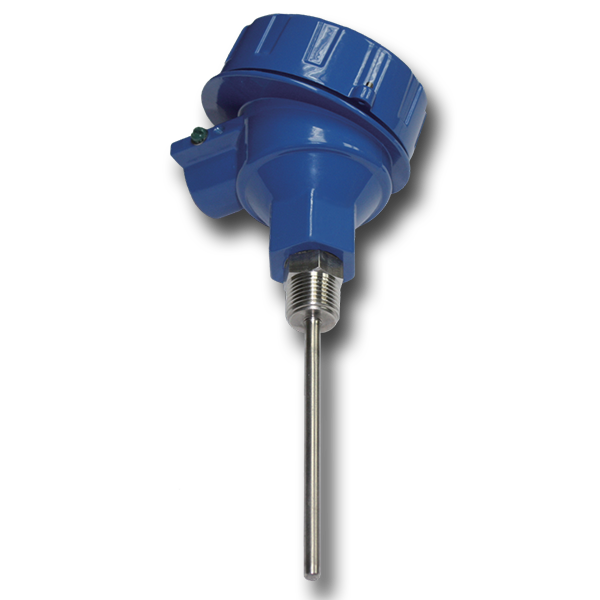

AX Series – Head Assembly Thermocouple Detector

Explosion Proof Type Series

Features:

  • Noble/Base Metal Sensing Elements

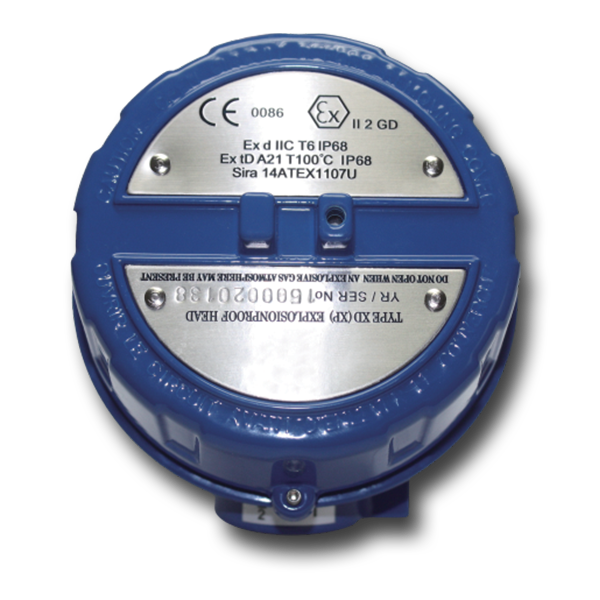

  • Casting Aluminum Head
  • Wide Temperature Ranges from -200°C to 2300°C
  • Various Sizes and Materials for your applications
  • IP68 Explosion Proof for applications in hazardous areas

加入詢價
Category:

Description

A temperature sensor is a device to measure temperature by an electrical signal. The typical sensing element is RTD (Resistance Temperature Detector) or thermocouple (T/C).
The RTD is a variable resistor that will change its electrical resistance depending on temperature. The platinum is commonly used as an RTD sensing element due to its purity, linearity and stability over a wide range of temperatures. A thermocouple is made by two dissimilar metals that generate electrical voltage in direct proportion to changes in temperature. HAWK AX model is with a aluminum explosion proof head assembly and a element installed in a metallic drawn and top-welded stem tube.
It is a intrinsically safety designs which are most widely used for applications in hazardous areas.

Typical Applications

  • Medical and Pharmaceutical industry
  • Dairy processing
  • Food and Beverage processing
  • Power generating stations
  • Offshore Oil platforms
  • Pulp and Paper mills
  • Waste water treatment
  • Petrochemical, Oil and Gas processing

Specifications

SENSING ELEMENT
K(Ni-Cr, Ni-Al)…0/+1200oC,
E(Ni-Cr, Ni-Cu)…-200/+900oC,
J(Fe, Ni-Cr)…-50/+750oC,
T(Cr, Ni-Cr)…-200/+350oC,
N(Ni-Cr-Si, Ni-Si)…0/+1200oC,
D(3%W.Re, 25%W.Re)…-200/+2300oC,
C(5%W.Re, 26%W.Re)…-200/+2300oC,
B(30%Pt.Ph, 6%Pt.Ph)…-200/+1700oC,
R(13%Pt.Ph, Pt)…0/+1600oC,
S(10%Pt.Ph, Pt)…0/+1550oC.

STEM DIAMETER
1/4″ diameter – Standard, 3/8″, 1/2″, 6mm, 8mm, 10mm, 12mm, other diameters available.

STEM MATERIAL
SS304, SS316, SS316L, SS310, Inconel.

STEM LENGTH
2 1/2″, 4″, 6″, 9″, 12″, 15″, 18″, 24″ standard lengths, available in other stem lengths.

HEAD&CONDUIT
Alloy Aluminum, 1/2″NPT, 3/4″NPT, M20*1.5, M25*1.5.

THREAD CONNECTION STYLE
Fixed Rigid Male/Female, Sliding Compression Male/Female, Plain,
1/2″, 3/8″, 1/4″ NPT standard, JIS, DIN, M14*1.0 and M20*1.5 available.

FLANGE CONNECTION STYLE
ANSI Flange 1/2″………2″ (150LB………2500LB rating),
JIS Flange 15A………50A (10K………63K rating),
DIN Flange DN15………DN50 (PN2.5………PN400Bar rating).

SANITARY CONNECTION STYLE
1/2″ (DN15)………5″ (DN125)
Tri-Clamp, APC, IDF, SMS, Cherr-Tank, Spud, DIN11851, Cheer-Brrell I Line, RTJ (APV).

TERMINAL BLOCK (INSULATION)
Ceramic (Al2O3).

WEATHERPROOF
IP68.
