PH Series – Head Assembly Thermocouple Detector

Standard Type Series

Features:

  • Noble/Base Metal Sensing Elements
  • Plastic Head
  • Wide Temperature Ranges from -30°C to 250°C
  • Various Sizes and Materials for your applications
  • IP65 Weather Proof for better dust and moisture resistance

加入詢價
Category:

Description

A temperature sensor is a device to measure temperature by an electrical signal. The typical sensing element is RTD (Resistance Temperature Detector) or thermocouple (T/C).

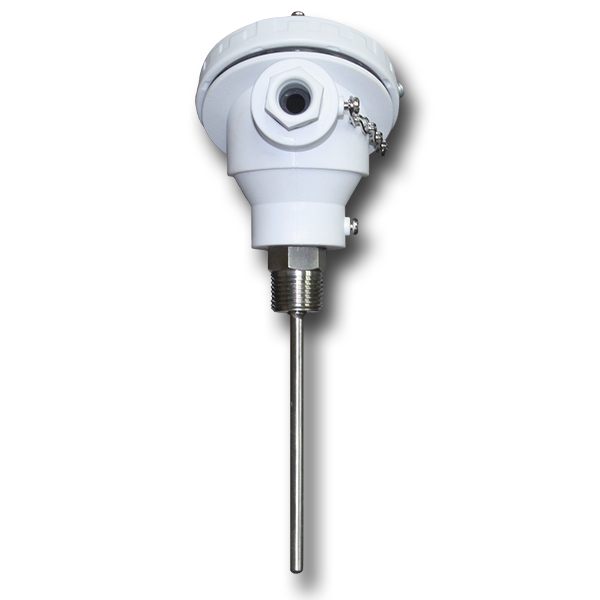

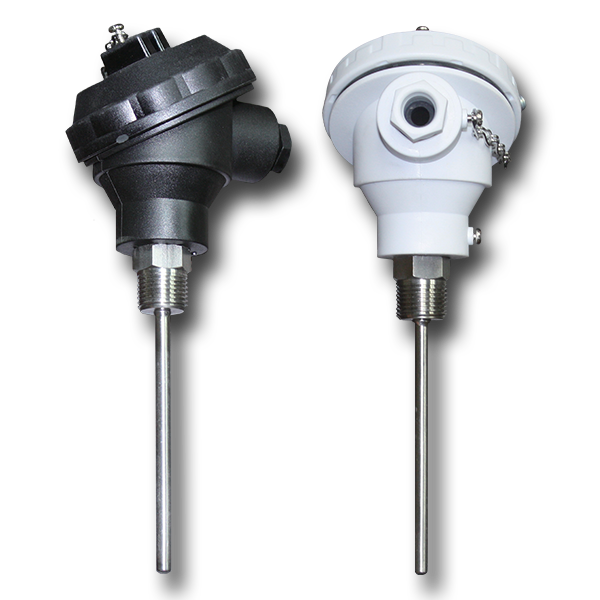

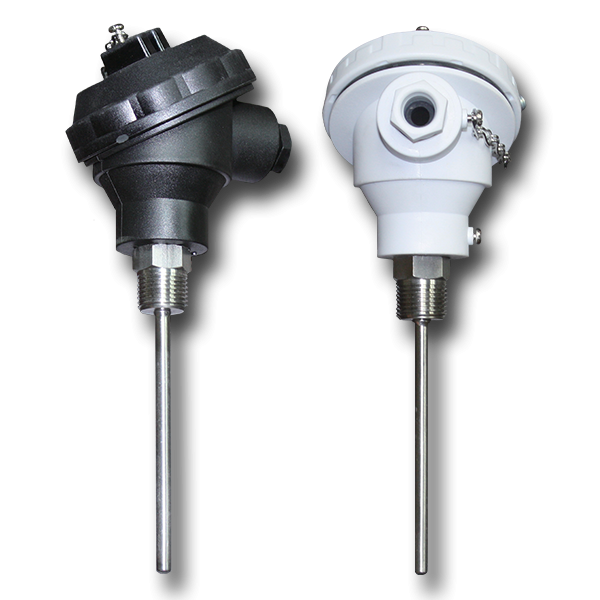

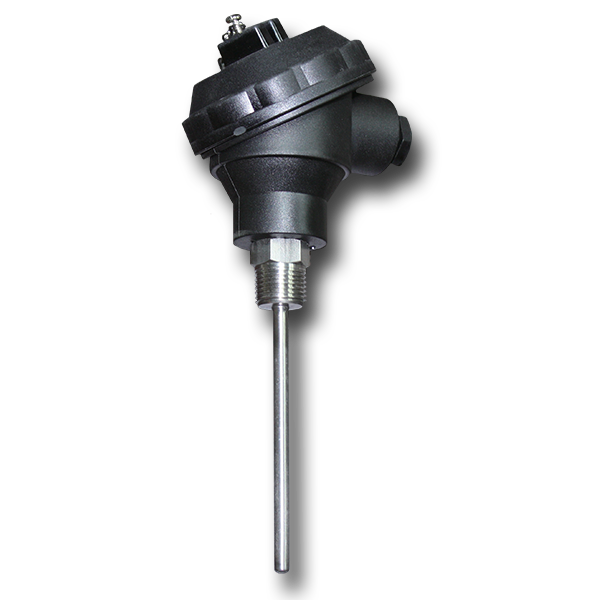

The RTD is a variable resistor that will change its electrical resistance depending on temperature. The platinum is commonly used as an RTD sensing element due to its purity, linearity and stability over a wide range of temperatures. A thermocouple is made by two dissimilar metals that generate electrical voltage in direct proportion to changes in temperature. HAWK PH model is with a plastic head assembly and a element installed in a metallic drawn and top-welded stem tube. The head assembly temperature sensor provides the better dust and moisture resistance. It is most widely used for general applications to offer the better environment resistance.

Typical Applications

  • Medical and Pharmaceutical industry
  • Dairy processing
  • Food and Beverage processing
  • Power generating stations
  • Offshore Oil platforms
  • Pulp and Paper mills
  • Waste water treatment
  • Petrochemical, Oil and Gas processing

Specifications

SENSING ELEMENT
K(Ni-Cr, Ni-Al)…0/+1200oC,
E(Ni-Cr, Ni-Cu)…-200/+900oC,
J(Fe, Ni-Cr)…-50/+750oC,
T(Cr, Ni-Cr)…-200/+350oC,
N(Ni-Cr-Si, Ni-Si)…0/+1200oC,
D(3%W.Re, 25%W.Re)…-200/+2300oC,
C(5%W.Re, 26%W.Re)…-200/+2300oC,
B(30%Pt.Ph, 6%Pt.Ph)…-200/+1700oC,
R(13%Pt.Ph, Pt)…0/+1600oC,
S(10%Pt.Ph, Pt)…0/+1550oC.

STEM DIAMETER
1/4″ diameter – Standard, 3/8″, 1/2″, 6mm, 8mm, 10mm, 12mm, other diameters available.

STEM MATERIAL
SS304, SS316, SS316L, SS310, Inconel.

STEM LENGTH
2 1/2″, 4″, 6″, 9″, 12″, 15″, 18″, 24″ standard lengths, available in other stem lengths.

HEAD&CONDUIT
Polypropylene (White), Nylon/Glass Fiber (Black), Bakelite (Black).
1/2″, 3/4″NPT, BSPT, PF or M20*1.5.

THREAD CONNECTION STYLE
Fixed Rigid Male/Female, Sliding Compression Male/Female, Plain,
1/2″, 3/8″, 1/4″ NPT standard, JIS, DIN, M14*1.0 and M20*1.5 available.

FLANGE CONNECTION STYLE
ANSI Flange 1/2″………2″ (150LB………2500LB rating),
JIS Flange 15A………50A (10K………63K rating),
DIN Flange DN15………DN50 (PN2.5………PN400Bar rating).

SANITARY CONNECTION STYLE
1/2″ (DN15)………5″ (DN125)
Tri-Clamp, APC, IDF, SMS, Cherr-Tank, Spud, DIN11851, Cheer-Brrell I Line, RTJ (APV).

TERMINAL BLOCK (INSULATION)
Bakelite.

WEATHERPROOF
IP65.
