Description
The I category temperature sensor is the device to measure surface temperature of an object such as pipe, bar, tube, dusts or vessel walls. The typical sensing element can be in RTD (Resistance Temperature Detector) or thermocouple (T/C).

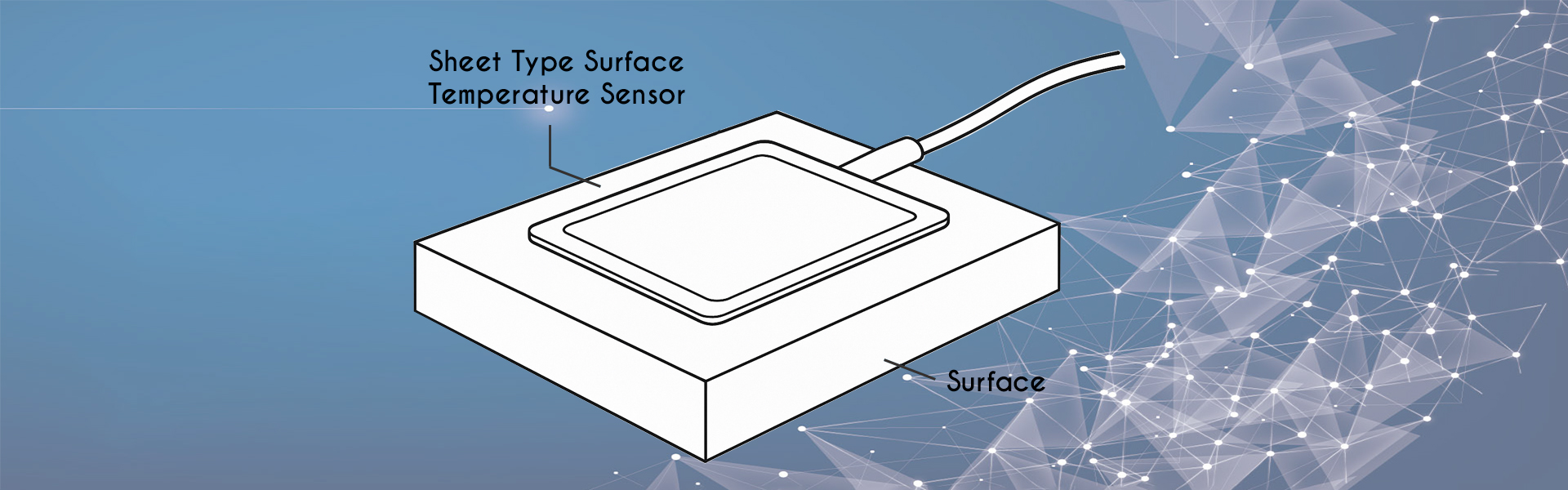

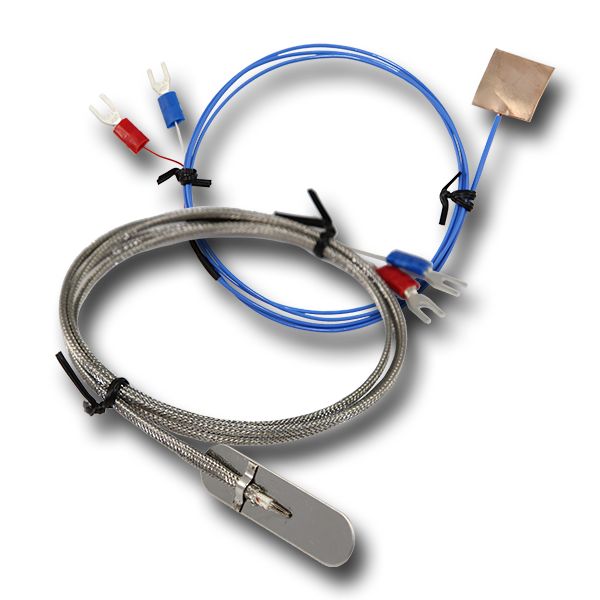

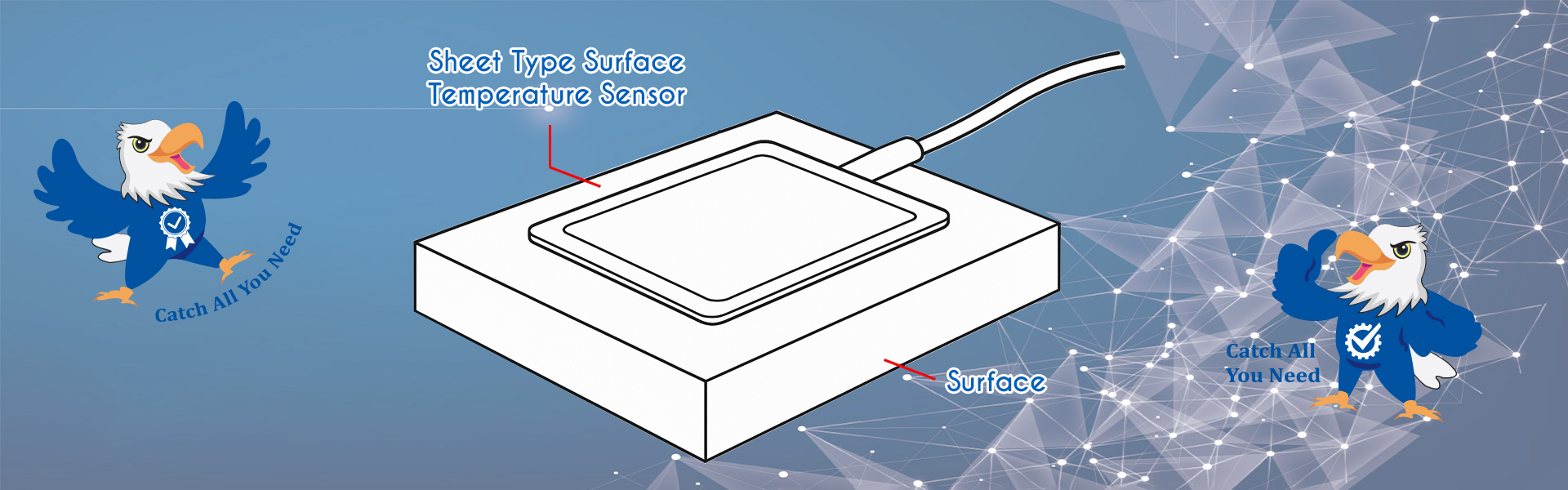

The HAWK A model sheet type temperature sensor is welded into a pad, allowing tight contact with surface. This type surface temperature sensor is a flat, flexible sensor designed to measure temperature on the surface of objects. It is commonly used where traditional probe-type sensors cannot fit, especially in applications requiring close contact with irregular or flat surfaces.
Typical Applications
- Measuring motor or transformer winding temperature.
- Monitoring battery pack surface temperature in EVs.
- HVAC system duct surface measurement.
- Industrial equipment surface monitoring (pipes, tanks, machinery).
- Electronics temperature control (e.g., PCBs, power modules).
Specifications
SENSING ELEMENT
K(Ni-Cr, Ni-Al)…0/+1200°C,
E(Ni-Cr, Ni-Cu)…-200/+900°C,
J(Fe, Ni-Cr)…-50/750°C,
T(Cr, Ni-Cr)…-200/+350°C,
N(Ni-Cr-Si, Ni-Si)…0/1200°C,
Platinum 100Ω/500Ω/1000Ω,
Nickel 120Ω, Copper 10Ω,
Single, Double or Triple Resistance, Element.
TOLERANCE (0C)-PT100
JIS/DIN
| Class A | Class B |
| ±(0.15+0.002|t|) | ±(0.3+0.005|t|) |
ASTM
| Class A | Class B |
| ±(0.13+0.0017|t|) | ±(0.25+0.0042|t|) |
SHEET STYLE
Rectangle, Square or Round.
SHEET MATERIAL
SS304, SS316, SS316L, Brass.
TRANSITION STYLE
Standard, Spring or Armor.
INSULATION/CONDUCTOR
Fiberglass, PVC or PTFE.
WIRE TERMINATION
Plain Leads-not stripped, Stripped.
Lead 3mm, Spade lug,
Standard Male Plug, Mini Male Plug,
Standard Female Socket,
Mini Female Socket,
Terminal Pin or others.
