Description
The I category temperature sensor is the device to measure surface temperature of an object such as pipe, bar, tube, dusts or vessel walls. The typical sensing element can be in RTD (Resistance Temperature Detector) or thermocouple (T/C).

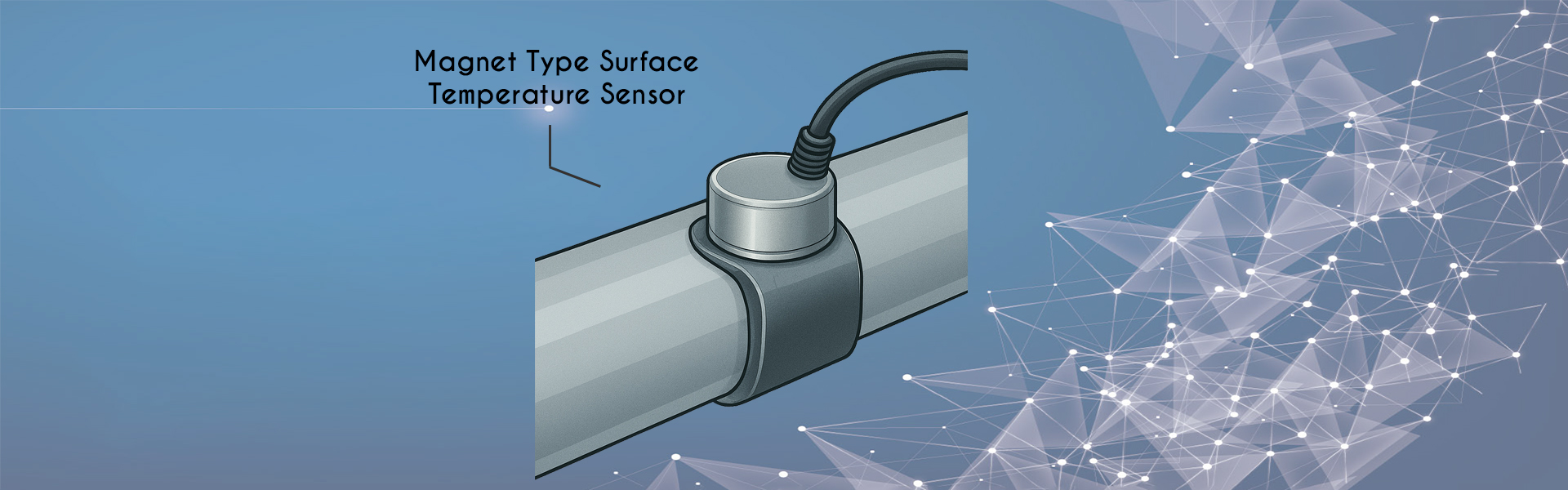

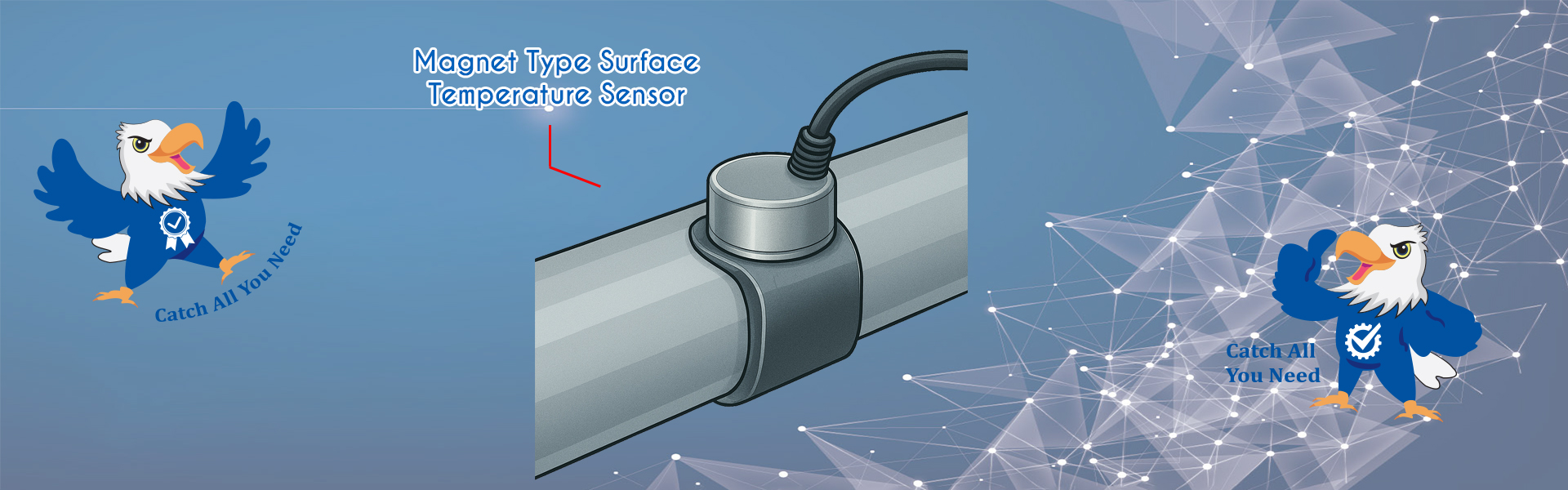

The HAWK G model Magnet Style Surface Temperature Sensor is a specialized surface-mounted sensor that uses a magnetic base to attach securely to ferromagnetic surfaces such as steel pipes, tanks, or equipment housings. It is designed to maintain a positive contact on regular and irregular surfaces and provides fast and accurate temperature measurement.
Typical Applications
- Monitoring pipe surface temperature in HVAC or process industries.
- Measuring boiler and furnace walls.
- Rotating equipment housings (motors, compressors).
- Temporary measurements in maintenance and testing.
Specifications
SENSING ELEMENT
K(Ni-Cr, Ni-Al)…0/+1200°C,
E(Ni-Cr, Ni-Cu)…-200/+900°C,
J(Fe, Ni-Cr)…-50/750°C,
T(Cr, Ni-Cr)…-200/+350°C,
N(Ni-Cr-Si, Ni-Si)…0/1200°C,
Platinum 100Ω/500Ω/1000Ω,
Nickel 120Ω, Copper 10Ω,
Single, Double or Triple Resistance, Element.
TOLERANCE (0C)-PT100
JIS/DIN
| Class A | Class B |
| ±(0.15+0.002|t|) | ±(0.3+0.005|t|) |
ASTM
| Class A | Class B |
| ±(0.13+0.0017|t|) | ±(0.25+0.0042|t|) |
TRANSITION STYLE
Standard, Spring or Armor.
INSULATION/CONDUCTOR
Fiberglass, PVC or PTFE.
WIRE TERMINATION
Plain Leads-not stripped, Stripped.
Lead 3mm, Spade lug,
Standard Male Plug, Mini Male Plug,
Standard Female Socket,
Mini Female Socket,
Terminal Pin or others.
