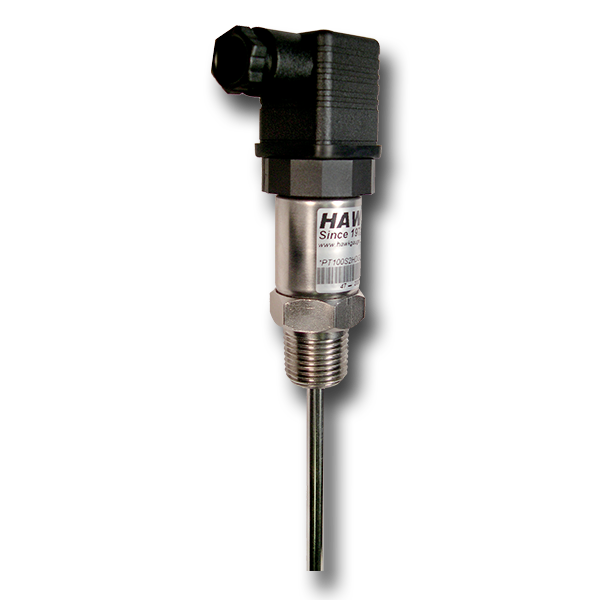

SD Series – DIN/M12 Electrical Connector RTD Temperature Sensor

Features:

  • Various Resistance Sensing Elements
  • DIN or M12 Electrical Connector
  • Wide Process Temperature Ranges from -30°C to 250°C
  • Various Sizes and Materials for your applications
  • IP65 Weather Proof for better dust and moisture resistance

加入詢價
Category:

Description

A temperature sensor is a device to measure temperature by an electrical signal. The typical sensing element is RTD (Resistance Temperature Detector) or thermocouple (T/C).
The RTD is a variable resistor that will change its electrical resistance depending on temperature. The platinum is commonly used as an RTD sensing element due to its purity, linearity and stability over a wide range of temperatures. A thermocouple is made by two dissimilar metals that generate electrical voltage in direct proportion to changes in temperature. HAWK SD model is with a DIN or M12 electrical connection and a element installed in a metallic drawn and top-welded stem tube. This temperature sensor provides the better dust and moisture resistance. It is easy to install for general applications to offer the better environment resistance.

Typical Applications

  • Medical and Pharmaceutical industry
  • Dairy processing
  • Food and Beverage processing
  • Power generating stations
  • Offshore Oil platforms
  • Pulp and Paper mills
  • Waste water treatment
  • Petrochemical, Oil and Gas processing

Specifications

SENSING ELEMENT
Platinum 100Ω/500Ω/1000Ω,
Nickel 120Ω, Copper 10Ω,
Single, Double or Triple Resistance Element.

TOLERANCE (oC)-PT100
JIS/DIN
Class A: ±(0.15+0.002|t|)
Class B: ±(0.3+0.005|t|)
ASTM
Class A: ±(0.13+0.0017|t|)
Class B: ±(0.25+0.0042|t|)

STEM DIAMETER
1/4″ diameter – Standard, 3/8″, 1/2″, 6mm, 8mm, 10mm, 12mm, other diameters available.

STEM MATERIAL
SS304, SS316, SS316L, SS310, Inconel.

STEM LENGTH
2 1/2″, 4″, 6″, 9″, 12″, 15″, 18″, 24″ standard lengths, available in other stem lengths.

ELECTRICAL CONNECTION
Terminal Box to DIN43650A-PG9, DIN43650A-G1/2, M12 Conduit.

THREAD CONNECTION STYLE
Fixed Rigid Male/Female, Sliding Compression Male/Female, Plain,
1/2″, 3/8″, 1/4″ NPT standard, JIS, DIN, M14*1.0 and M20*1.5 available.

FLANGE CONNECTION STYLE
ANSI Flange 1/2″………2″ (150LB…2500LB rating),
JIS Flange 15A………50A (10K………63K rating),
DIN Flange DN15………DN50 (PN2.5………PN400Bar rating).

SANITARY CONNECTION STYLE
1/2″ (DN15)………5″ (DN125)
Tri-Clamp, APC, IDF, SMS, Cherr-Tank, Spud, DIN11851, Cheer-Brrell I Line, RTJ (APV).

TERMINAL BLOCK (INSULATION)
Sn/PA.

ENVIRONMENT TEMPERATURE
-25…+85oC.

WEATHERPROOF
IP65.
