Description
A temperature sensor is a device to measure temperature by an electrical signal. The typical sensing element is RTD (Resistance Temperature Detector) or thermocouple(T/C).

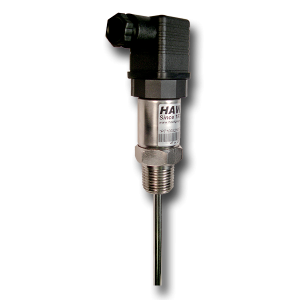

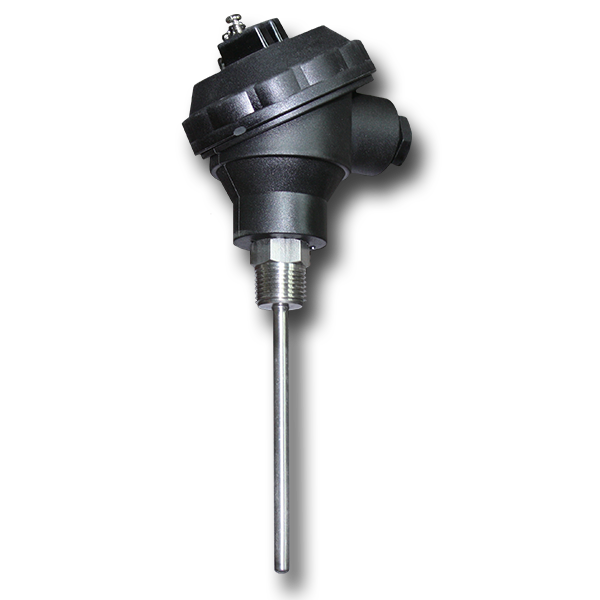

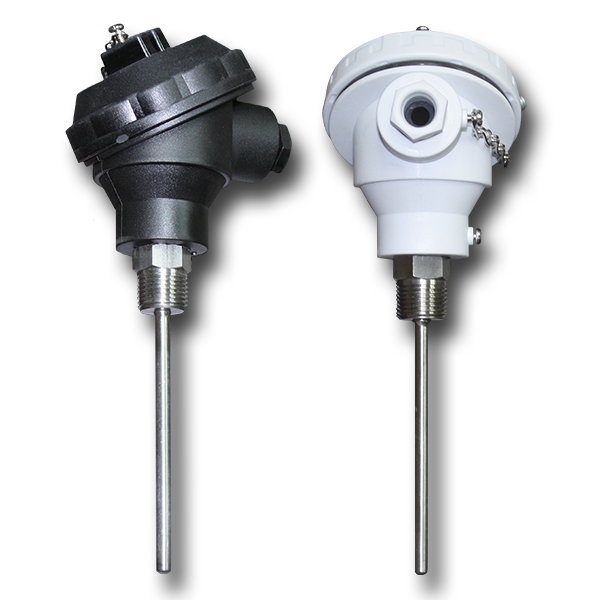

The RTD is a variable resistor that will change its electrical resistance depending on temperature. The platinum is commonly used as an RTD sensing element due to its purity, linearity and stability over a wide range of temperatures. A thermocouple is made by two dissimilar metals that generate electrical voltage in direct proportion to changes in temperature. HAWK PH model is with a plastic head assembly and a element installed in a metallic drawn and top-welded stem tube. The head assembly temperature sensor provides the better dust and moisture resistance. It is most widely used for general applications to offer the better environment resistance.
Typical Applications
- Medical and Pharmaceutical industry
- Dairy processing
- Food and Beverage processing
- Power generating stations
- Offshore Oil platforms
- Pulp and Paper mills
- Waste water treatment
- Petrochemical, Oil and Gas processing
Specifications
SENSING ELEMENT
Platinum 100Ω/500Ω/1000Ω,
Nickel 120Ω, Copper 10Ω,
Single, Double or Triple Resistance Element.
TOLERANCE (oC)-PT100
JIS/DIN
Class A: ±(0.15+0.002|t|)
Class B: ±(0.3+0.005|t|)
ASTM
Class A: ±(0.13+0.0017|t|)
Class B: ±(0.25+0.0042|t|)
STEM DIAMETER
1/4″ diameter – Standard, 3/8″, 1/2″, 6mm, 8mm, 10mm, 12mm, other diameters available.
STEM MATERIAL
SS304, SS316, SS316L, SS310, Inconel.
STEM LENGTH
2 1/2″, 4″, 6″, 9″, 12″, 15″, 18″, 24″ standard lengths, available in other stem lengths.
HEAD&CONDUIT
Polypropylene (White), Nylon/Glass Fiber (Black), Bakelite (Black).
1/2″, 3/4″NPT, BSPT, PF or M20*1.5.
THREAD CONNECTION STYLE
Fixed Rigid Male/Female, Sliding Compression Male/Female, Plain,
1/2″, 3/8″, 1/4″ NPT standard, JIS, DIN, M14*1.0 and M20*1.5 available.
FLANGE CONNECTION STYLE
ANSI Flange 1/2″………2″ (150LB…2500LB rating),
JIS Flange 15A………50A (10K………63K rating),
DIN Flange DN15………DN50 (PN2.5………PN400Bar rating).
SANITARY CONNECTION STYLE
1/2″ (DN15)………5″ (DN125)
Tri-Clamp, APC, IDF, SMS, Cherr-Tank, Spud, DIN11851, Cheer-Brrell I Line, RTJ (APV).
TERMINAL BLOCK (INSULATION)
Bakelite.
WEATHERPROOF
IP65.
