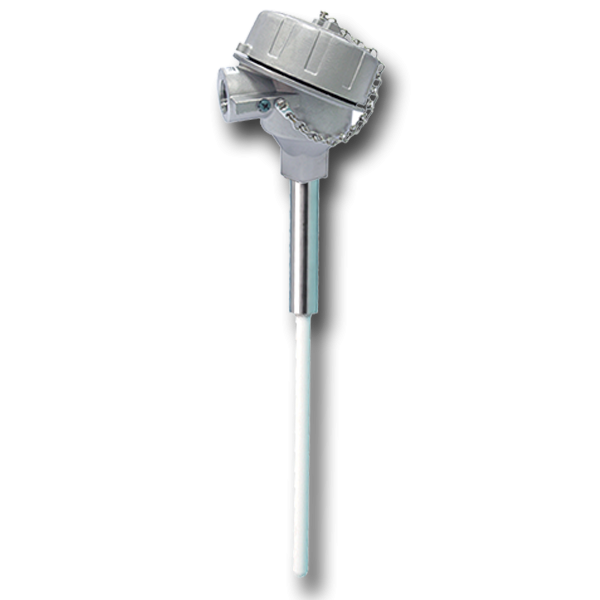

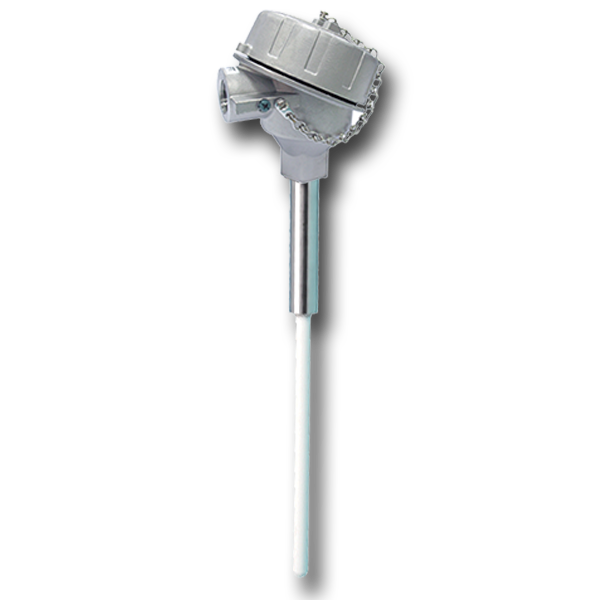

SX Series – Protecting Tube/Head Assembly Thermocouple

Features:

  • Noble/Base Metal Sensing Elements
  • Case 316 Stainless Steel
  • Wide Temperature Ranges from -200°C to 2300°C
  • Various Robust Tube Sizes and Materials for your applications
  • IP68 Weather Proof for applications in hazardous areas

加入詢價
Category:

Description

A protecting tube/head assembly temperature sensor is most commonly used in high temperature process heating application. This assembly includes a thermocouple (T/C) sensor, robust tube and head housing which protect the sensing element and insure that the temperature of the process is passed to the sensor.
The protecting tube is available in non-metal, metal alloys, or composite materials such as Fused Quartz, Cermet, Alumina, Mullite, SS316, P4, 253MA, Inconel 600, UMCO50, Titanium, Tantalum and so on in order to offer protection from a variety of high temperature process environment.
HAWK SX model is with 316 stainless steel explosion proof head assembly temperature sensor which provides the better dust and moisture resistance.
It is a intrinsically safety designs which are most widely used for applications in hazardous areas.

Typical Applications

  • Medical and Pharmaceutical industry
  • Dairy processing
  • Food and Beverage processing
  • Power generating stations
  • Offshore Oil platforms
  • Pulp and Paper mills
  • Waste water treatment
  • Petrochemical, Oil and Gas processing

Specifications

SENSING ELEMENT
K(Ni-Cr, Ni-Al)…0/+1200oC,
E(Ni-Cr, Ni-Cu)…-200/+900oC,
J(Fe, Ni-Cr)…-50/+750oC,
T(Cr, Ni-Cr)…-200/+350oC,
N(Ni-Cr-Si, Ni-Si)…0/+1200oC,
D(3%W.Re, 25%W.Re)…-200/+2300oC,
C(5%W.Re, 26%W.Re)…-200/+2300oC,
B(30%Pt.Ph, 6%Pt.Ph)…-200/+1700oC,
R(13%Pt.Ph, Pt)…0/+1600oC,
S(10%Pt.Ph, Pt)…0/+1550oC.

TUBE SIZE
3/8″, 1/2″, 11/16ʺ, 5/8″, 3/4″, 7/8″, 1″, 1 1/4″, 1 1/2″, 1 3/4″, 10mm, 15mm, 16mm, 17mm, 18mm, 19mm, 20mm, 21mm, 22mm, 24mm, 25mm, 26mm and other dia available.

TUBE MATERIAL
SS304, SS316, SS316L, SS310, Inconel.

TUBE LENGTH
9″, 12″, 15″, 18″, 24″, 30″, 36″, 500mm, 1000mm, 1400mm standard lengths, available in other lengths.

HEAD&CONDUIT
Casting 316 Stainless Steel, 1/2″NPT, 3/4″NPT, M20*1.5, M25*1.5.

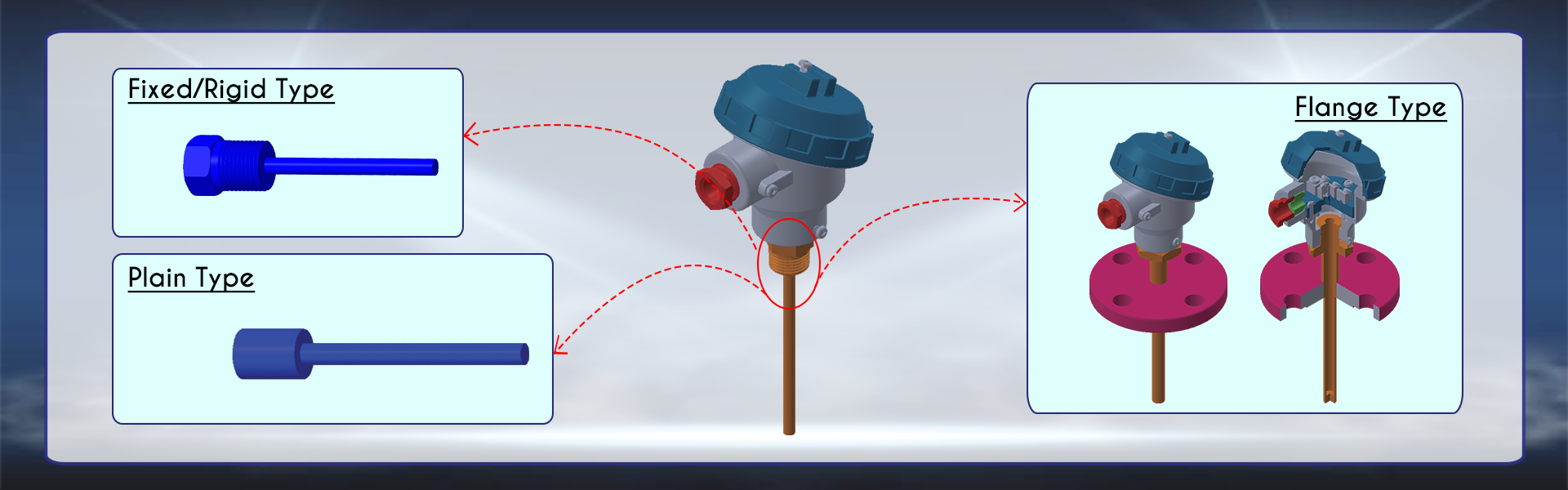

THREAD CONNECTION STYLE
Fixed Rigid Male/Female, Plain,
1/2″, 3/8″, 1/4″ NPT standard, JIS, DIN, M14*1.0 and M20*1.5 available.

FLANGE CONNECTION STYLE
ANSI Flange 1/2″………2″ (150LB………2500LB rating),
JIS Flange 15A………50A (10K………63K rating),
DIN Flange DN15………DN50 (PN2.5………PN400Bar rating).

TOP SENSING TUBE MATERIAL
SS304, SS316, SS316L, SS310S, SS321, Sandvik P4 (446), Sandvik 253M, Inconel 600, Inconel 800, Hastelloy B, Hastelloy C276, UMCO 50, Titanium, Molybdenum, Tantalum, PFA, Fused Quartz, Cermet, Silicon Carbide, Boron Nitride, Alumina, Mullite, Zirconium, Magnesium Oxide.

TERMINAL BLOCK (INSULATION)
Ceramic (Al2O3).

WEATHERPROOF
IP68.
