Description

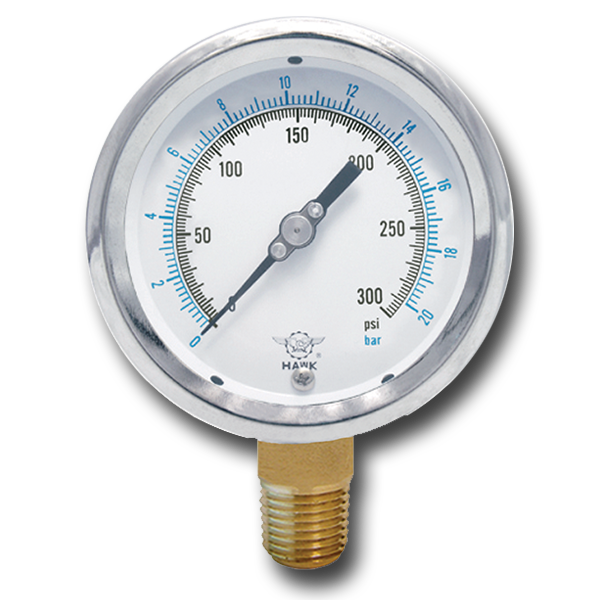

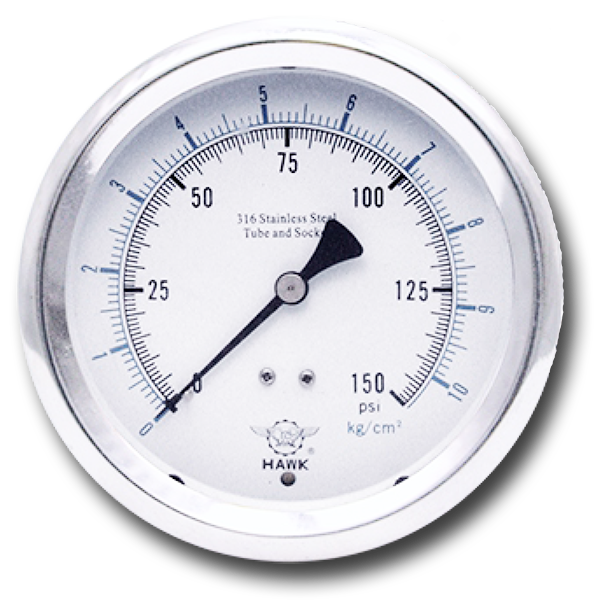

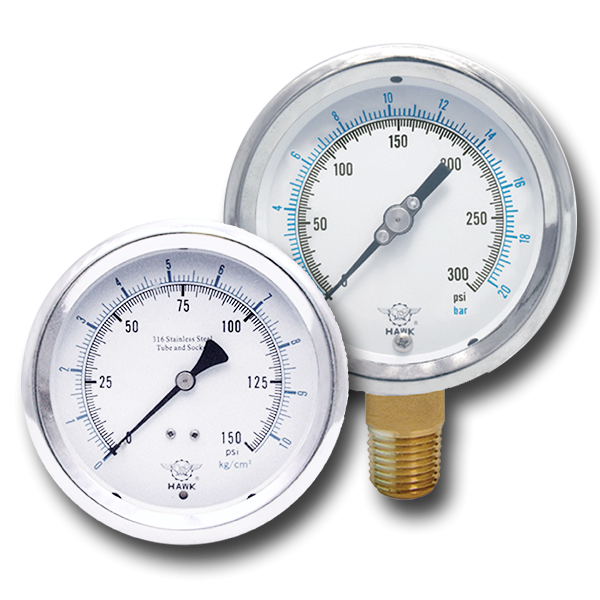

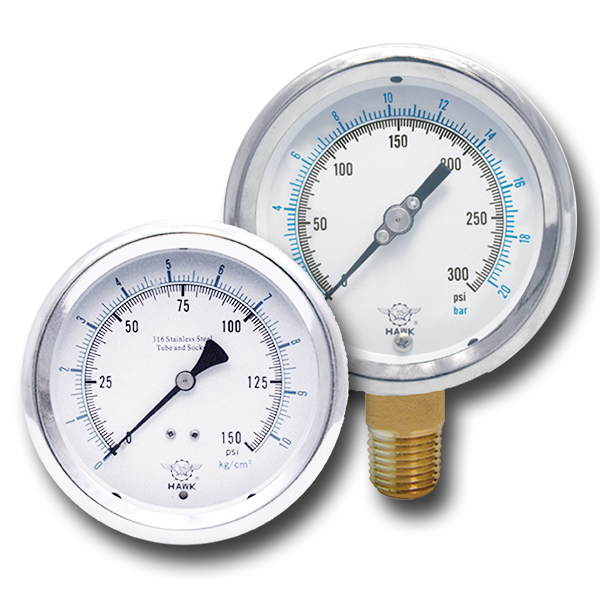

HAWK 24L and 24B series bourdon tube stainless steel case pressure gauges are designed to fulfill the requirements of high quality from various industries. It is offered with waterproof and corrosion resistant case. Widely pressure ranges can be chosen. It is suitable to measure pressure of air, oil, gas, water or any other medium which does not clog the pressure port or corrode copper alloy. Liquid Filling is available to diminish the effects of vibration, pulsation and shock and further enhances the gauge life.
Typical Applications
- Hydraulic monitoring systems
- Power generating stations
- Compressors
- Valve positioners
- Pneumatic systems
- Regulators
- Pumps
Specifications
OPERATING
Steady: 75%*full scale value
Pulsation: 50%*full scale value
Sudden: 100%*full scale value
The appropriate operating range falls in the middle half of the gauge (25% to 75% of full scale). If you choose the unsuitable range, the fatigue of bourdon tube may be resulted. HAWK Supplies a wide selection of range from vacuum to 150000 PSI including compound range.
TEMPERATURE LIMIT
Ambient: -25 to 60°C (Dry Gauge).
Media: max 60°C-Standard.
TEMPERATURE EFFECT
Accuracy of measurement will be effected by the temperature change. This inaccuracy may as high as ±0.3% for 12°C temperature change.
DIAL SIZE
2 1/2″(63mm), 3″(75mm), 4″(100mm).
CASE&RING
Stainless Steel 304 (SS316-Option), polished crimped ring.
SOCKET
Brass.
MOVEMENT
Brass.
BOURDON TUBE
Brass.
WINDOW
Plain Glass-Standard.
Tempered safety, Polycarbonate or Laminated safety glass-Optional.
Several Kinds of Window
POINTER
Anodized aluminum with black finish.
ACCURACY
±2-1-2% of span (Grade 1A to ASME B40.1).
SCALE
PSI, kPa, Mpa, bar, kg/cm2, inHg, cmHg, torr, mmHg (single or dual scale).
CONNECTION
1/2″, 3/8″, 1/4″, 1/8″ NPT standard, JIS, DIN, M14*1.0 and M20*1.5 available.
MOUNTING
Stem or Flushing U-clamp mounting.
WEATHERPROOF
NEMA 4X/IP65 enclosure.
